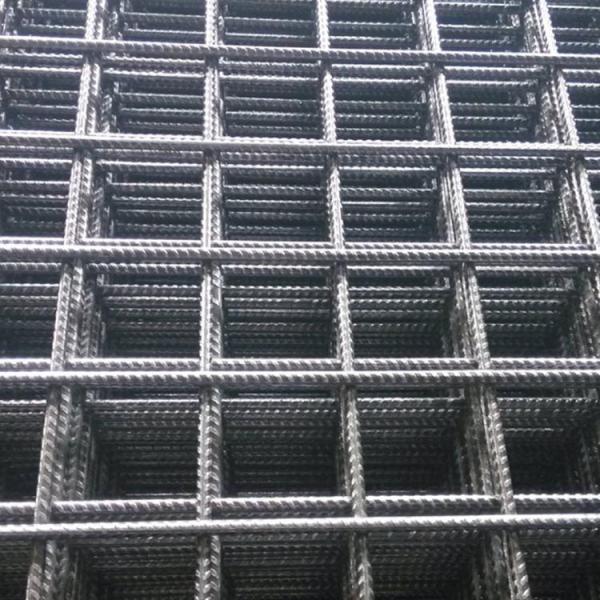

Concrete reinforcing welded wire mesh introduction:
Concrete reinforcement mesh is also known as welded reinforcement mesh and concrete reinforcing mesh.
Concrete reinforcement mesh is a mesh with longitudinal reinforcement and transverse reinforcement arranged at a certain distance and at right angles to each other, and all intersections are welded together.
Material of the concrete reinforcing mesh:
The reinforcement mesh should be made of crb550 cold-rolled ribbed steel bar, or crb510 cold drawn smooth steel bar
Specification of Concrete reinforcing welded wire mesh
| WIPE DIAMETER | WIRES NUMBER | PITCH OF WIRES | SHEET DIMENSION | (SQM) | Edge wires | (kg) SHEET | (kg/SQM) |
| MESH SHEET | | | | | | | | | | |
| TYDE | LONG | CROSS | LONG | CROSS | LONG | CROSS | WIDTH | LENGTH | AREA | | WEIGHT | | |
| Sqaure Mesh | | | |
| SL52 | 4.77 | 4.77 | 10 | 30 | 200 | 200 | 2400 | 6000 | 14.40 | | 20.000 | 1.4000 | |
| SL62 | 6.00 | 6 | 10 | 30 | 200 | 200 | 2400 | 6000 | 14.40 | 4x4.24@100 | 33.000 | 2.292 | |
| SL72 | 6.75 | 6.75 | 10 | 30 | 200 | 200 | 2400 | 6000 | 14.40 | 4x4.77@100 | 41.000 | 2.778 | |
| SL81 | 7.60 | 7.60 | 25 | 60 | 100 | 100 | 2400 | 6000 | 14.40 | 0 | 105.000 | 7.100 | |
| SL82 | 7.6 | 7.6 | 10 | 30 | 200 | 200 | 2400 | 6000 | 14.40 | 4X5.37@100 | 52.000 | 3.611 | |
| SL92 | 8.6 | 8.6 | 10 | 30 | 200 | 200 | 2400 | 6000 | 14.40 | 4x6.00 @100 | 66.000 | 4.514 | |
| SL102 | 9.5 | 9.5 | 10 | 30 | 200 | 200 | 2400 | 6000 | 14.40 | 4X6.75@100 | 80.000 | 5.556 | |
| SL63 | 6 | 6 | 6 | 30 | 300 | 300 | 2300 | 6000 | 13.80 | 4X4.00@100 | 21.000 | 1.594 | |
| SL53 | 4.77 | 4.77 | 6 | 20 | 300 | 300 | 2300 | 6000 | 13.80 | 4X4.00@100 | 15.000 | 1.000 | |
Advantage of the Concrete reinforcement mesh
- The concrete reinforcing mesh can greatly reduce the installation time of reinforcement, which is 50% - 70% less than that of binding mesh at the construction site.
- Welded reinforcing mesh can reduce the occurrence of concrete cracks, because the spacing of reinforcement mesh is relatively dense, and the longitudinal and transverse wires of welded mesh form a network structure, which can play a bonding and anchoring role.
- The point welding is firmed,
Concrete reinforcement welded wire mesh machine:
concrete reinforcement welded wire mesh packing:
